Automatic packaged drinking water filling production plant in good price
water filling production line
Purified Water Filling Machine

PET Plastic Bottle Mineral Water Filling Machine

Bottled Drinking Water Filling Machine, Its Filling Method Is Gravity Filling. Gravity Filling Machine, Also Known As Atmospheric/Normal Pressure Filling Machine, Means That Under Atmospheric Pressure, It Directly Relies On The Weight Of The Filling Material To Flow Into The Packaging Container. This Kind Of Filling Is Only Suitable For Filling Liquid With Low Viscosity And No Gas.
PET Bottle Water, Low Cost, Easy To Carry, And Diversified Bottle Design. It Is The Main Way Of Drinking Water Packing In The Market.

Additional information

Filling Product

Water
Filling Speed

Max 30000bph
Bottle Size

Φ55-110MM, Height 150-310mm
Control Type

PLC
Get a quote

View Videos

The Complete Water Bottle Filling Machine Production line with Bottle Making Machine, High-Speed Rinsing Filling Capping Monoblock, OPP Label Sticking Machine And Carton Packing Machine.

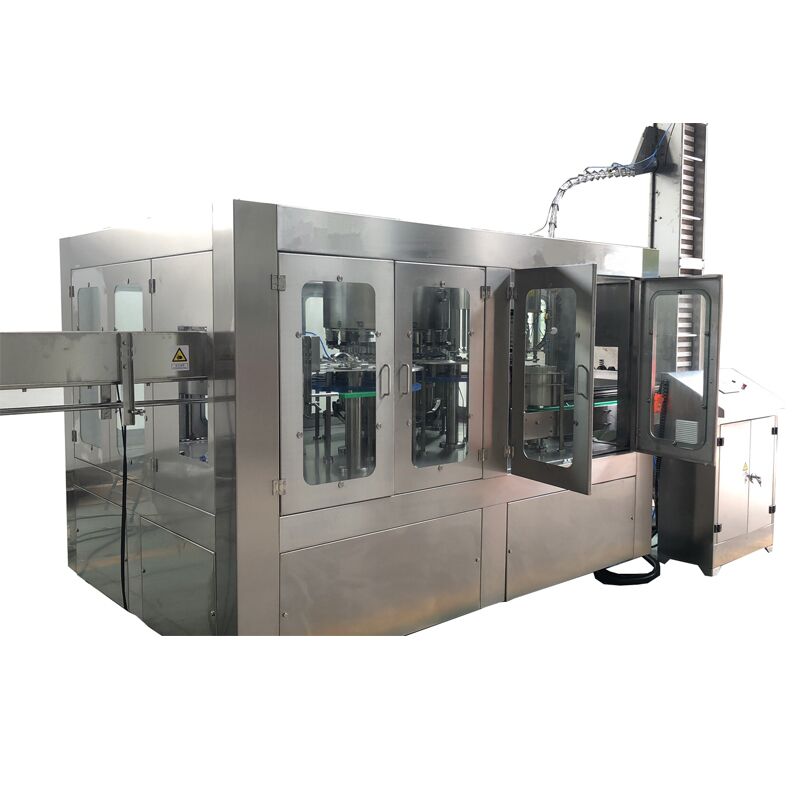

Details of PET Plastic Bottle Mineral Water Filling Machine

Mineral Water Filling Machine Main Structure

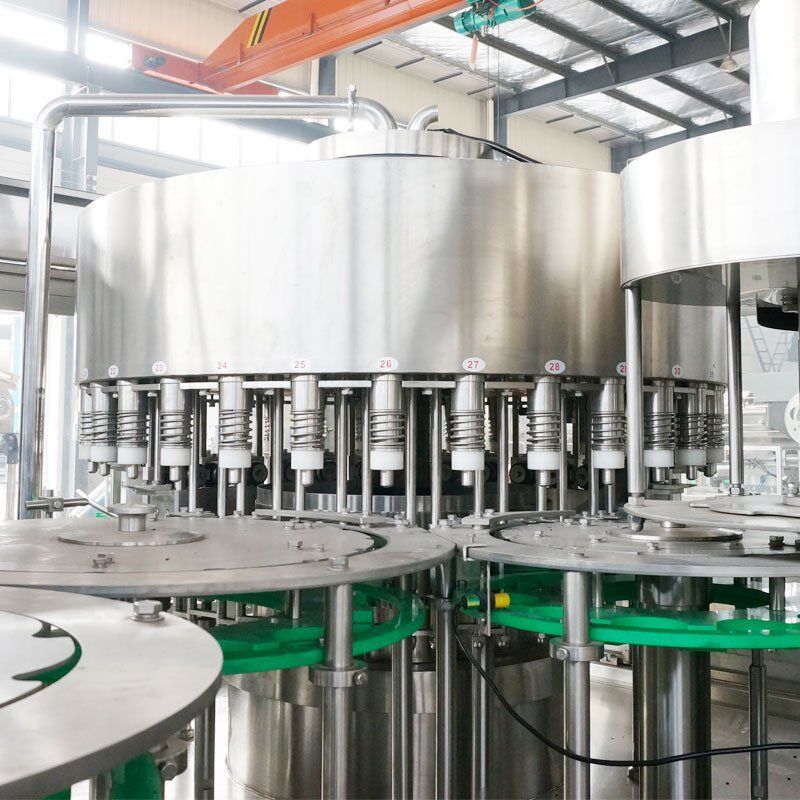

Mineral Water Filling Machine is mainly composed of rinsing machine, filling machine, capping machine, Workbench, inlet and outlet bottle arc plate, star wheel, motor transmission, frame, and gas-electric control part.

Mineral Water Filling Machine Character

  • Bottleneck suspension operation design assures the bottle runs smoothly and reliably. At the same time greatly reduce the number of change parts, and save time to change bottle type.
  • PLC programmable control, frequency conversion stepless speed regulation, advanced control, easy operation, and maintenance.

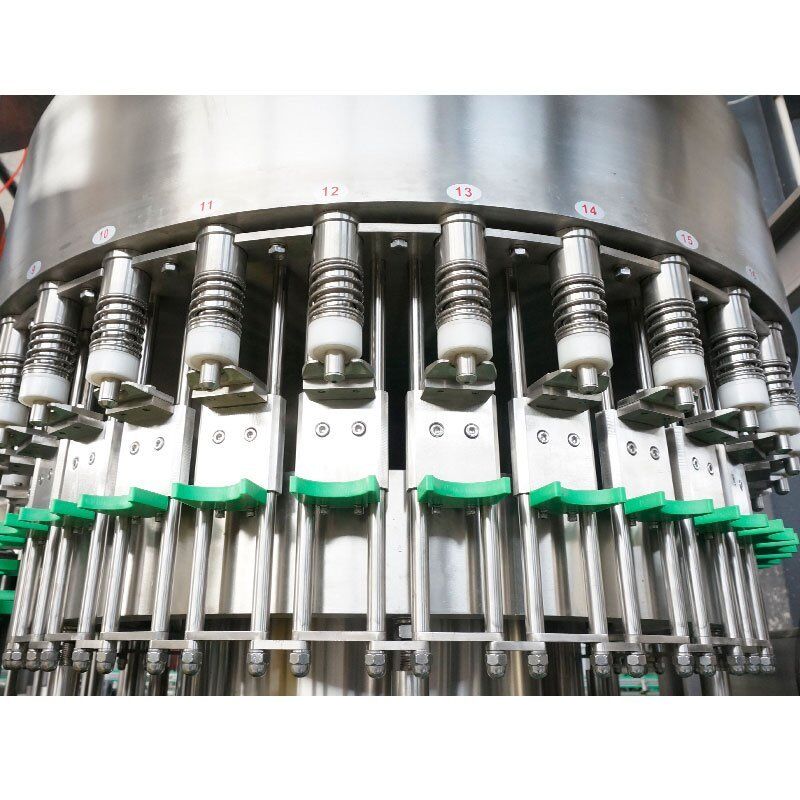

  • High-precision high-speed gravity filling valve control liquid surface smoothly and drip-free.

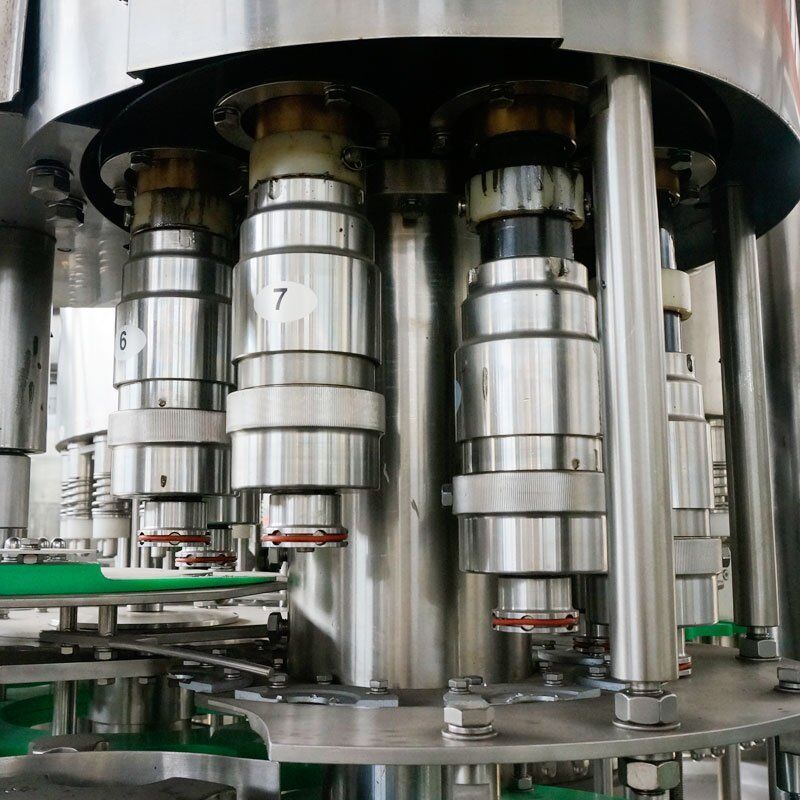

  • The magnetic constant torque capping is used to realize the function of the automatic grip and screw cap. The cap screw torque is stepless adjustable and does not hurt the cap. The capping is strict and reliable.
  • Advanced control, full function. With the liquid tank level automatic control, no bottle not filling, no bottle no capping and other automatic control functions.

Parameter

MODEL

CGF

 8-8-3 14-12-5 16-16-6 24-24-6 32-32-8

40-40-10

SPEED

BPH/500ML

 3000 5000 8000 12000 15000

18000

BOTT;E RANGE

Φ55-110MM

Height 150-310mm

WASHING POSITION

 8 14 16 24 32

40
FILLING POSITION 8 12 16 24 32

40

CAPPING POSITION

 3 5 6 6 8

10
