5L Bottle Filling Machine 3 IN 1

Rotary Type Filling Machine Speed Is from 1500Bph. Bottles From 3L to 10L Are Optional. It Is Suitable For Higher Speed Water Production Line.

Additional information

Filling Speed

1500bph-15000bph

Bottle Size

3-10L

Combined Type

3 in 1

Control Type

PLC

View Videos

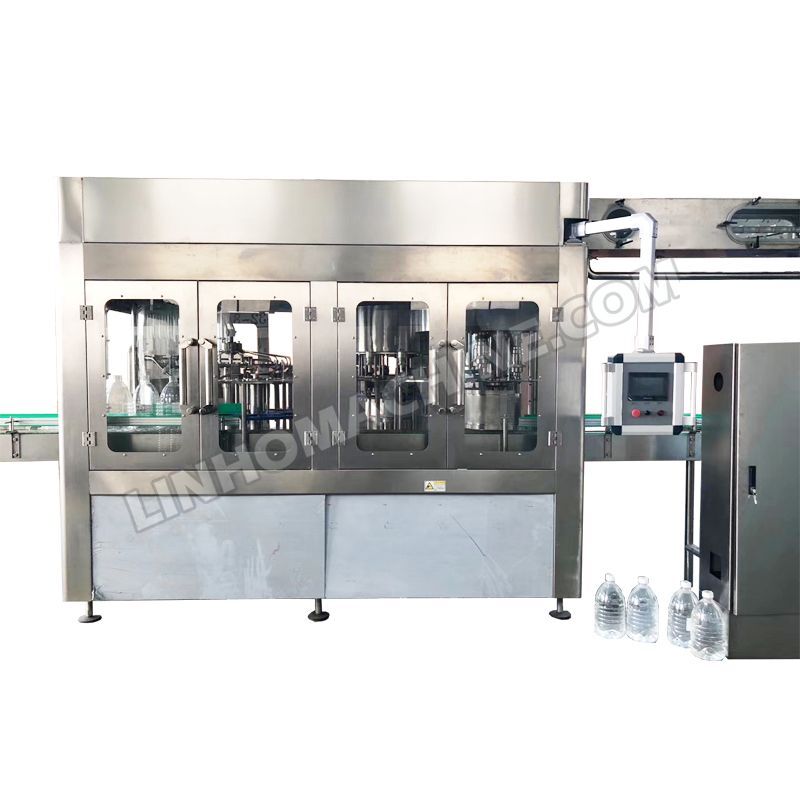

Combined Water Bottle Filling Machine For 5L, 7L, 10L Big Bottles. Speed Is 1500 Bottles Per Hour For This Model 8-8-4(8 Rinsers, 8 Filler, And 4 Cappers).

Details of 5L Bottle Filling Machine 3 IN 1

Main structure

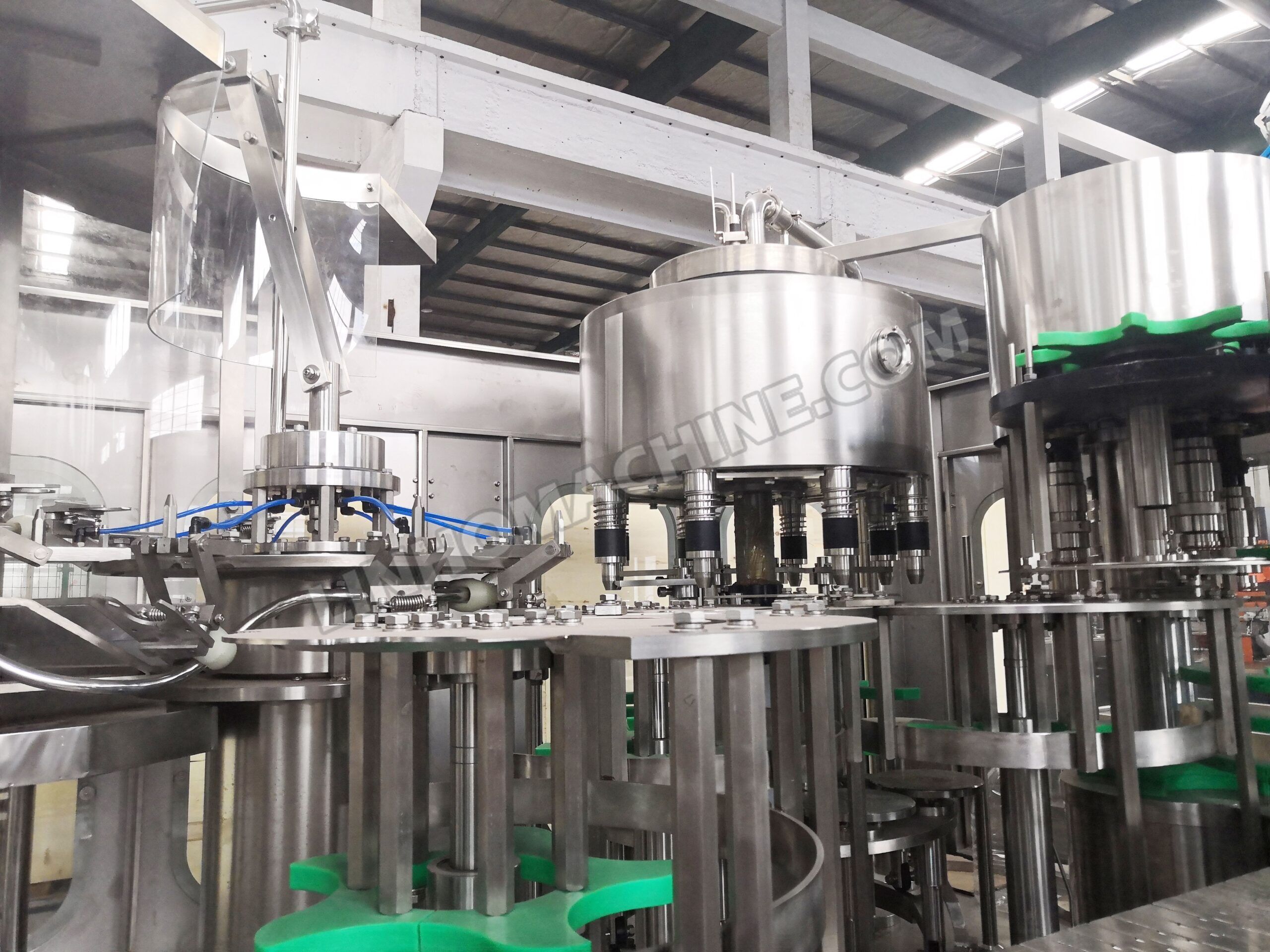

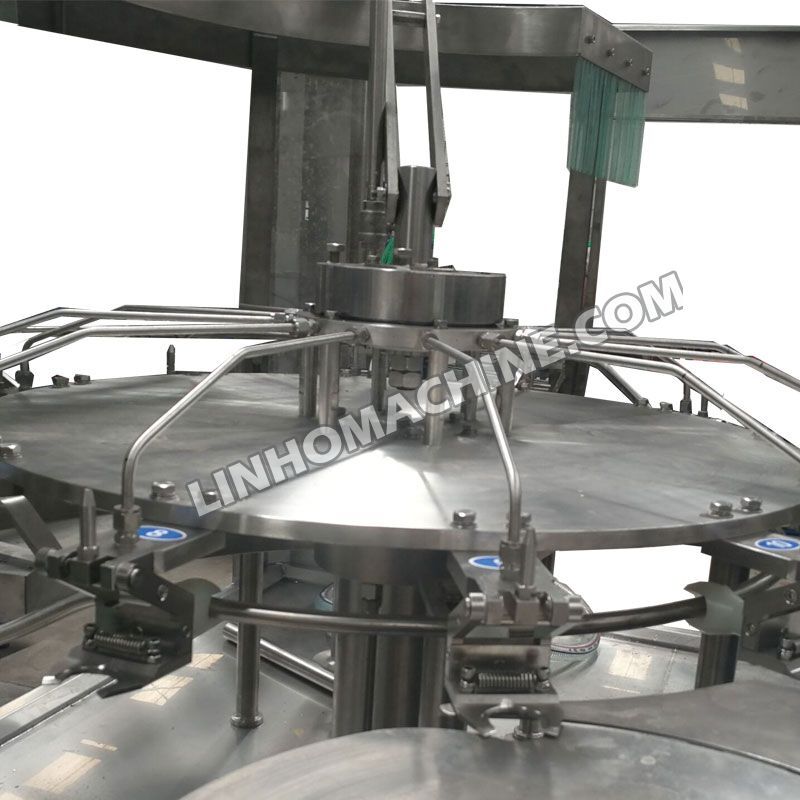

This equipment is mainly composed of rinsing machine, filling machine, capping machine, Workbench, inlet and outlet bottle arc plate, star wheel, motor transmission, frame, and gas-electric control part.

Character

  • Bottleneck suspension operation design assures the bottle runs smoothly and reliably. At the same time greatly reduce the number of change parts, and save time to change bottle type.
  • PLC programmable control, frequency conversion stepless speed regulation, advanced control, easy operation and maintenance.

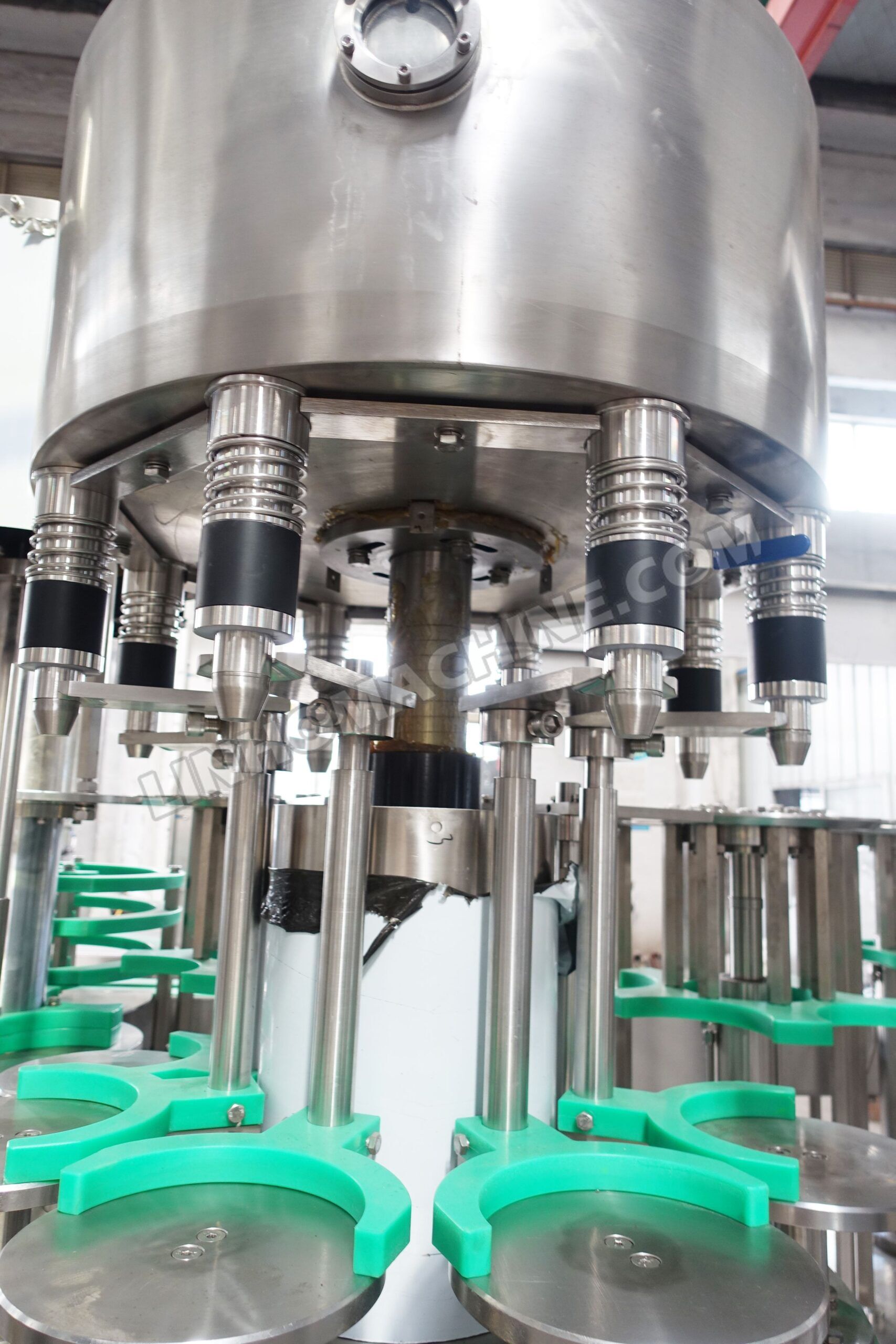

  • High-precision high-speed gravity filling valve control liquid surface smoothly and drip-free.
  • The magnetic constant torque capping is used to realize the function of the automatic grip and screw cap. The cap screw torque is stepless adjustable and does not hurt the cap. The capping is strict and reliable.
  • Advanced control, full function. With the liquid tank level automatic control, no bottle not filling, no bottle no capping and other automatic control functions.

Parameter

MODEL



8-8-4 12-12-4 16-16-5 20-20-5

36-36-9

SPEED

BOTTLES/HOUR

1500

2500 4000 5000

10000

BOTTLE RANGE

3L-10L

WASH POSITION

8

12 16 20 36

FILLING POSITION

8 12 16 20

36

CAPPING POSITION 4 4 5 5

9
