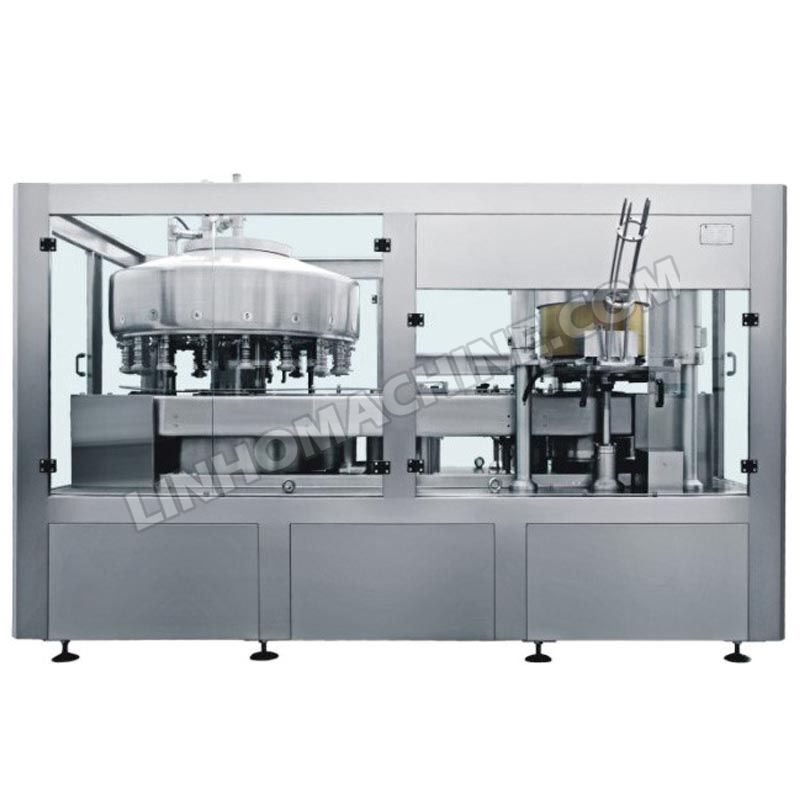

Noncarbonated Drink Can Filling Machine

It Is a Filling And Seaming Machine Set, With PLC, Frequency Converter, And HMI. Setup The Production Speed On The Touchscreen. Machine Alarm Automatically of All Common Malfunctions And Show The Cause And Position Of Malfunction, PLC Detect And Decide To Continue Or Stop The Machine According To The Level Of Malfunction.

Additional information

Filling Speed

8000-24000CPH

Filling Theory

Gravity, Negative Pressure

Control Type

PLC & HMI

Machine Type

Filling Sealing 2 in 1, Single Machine

View Videos

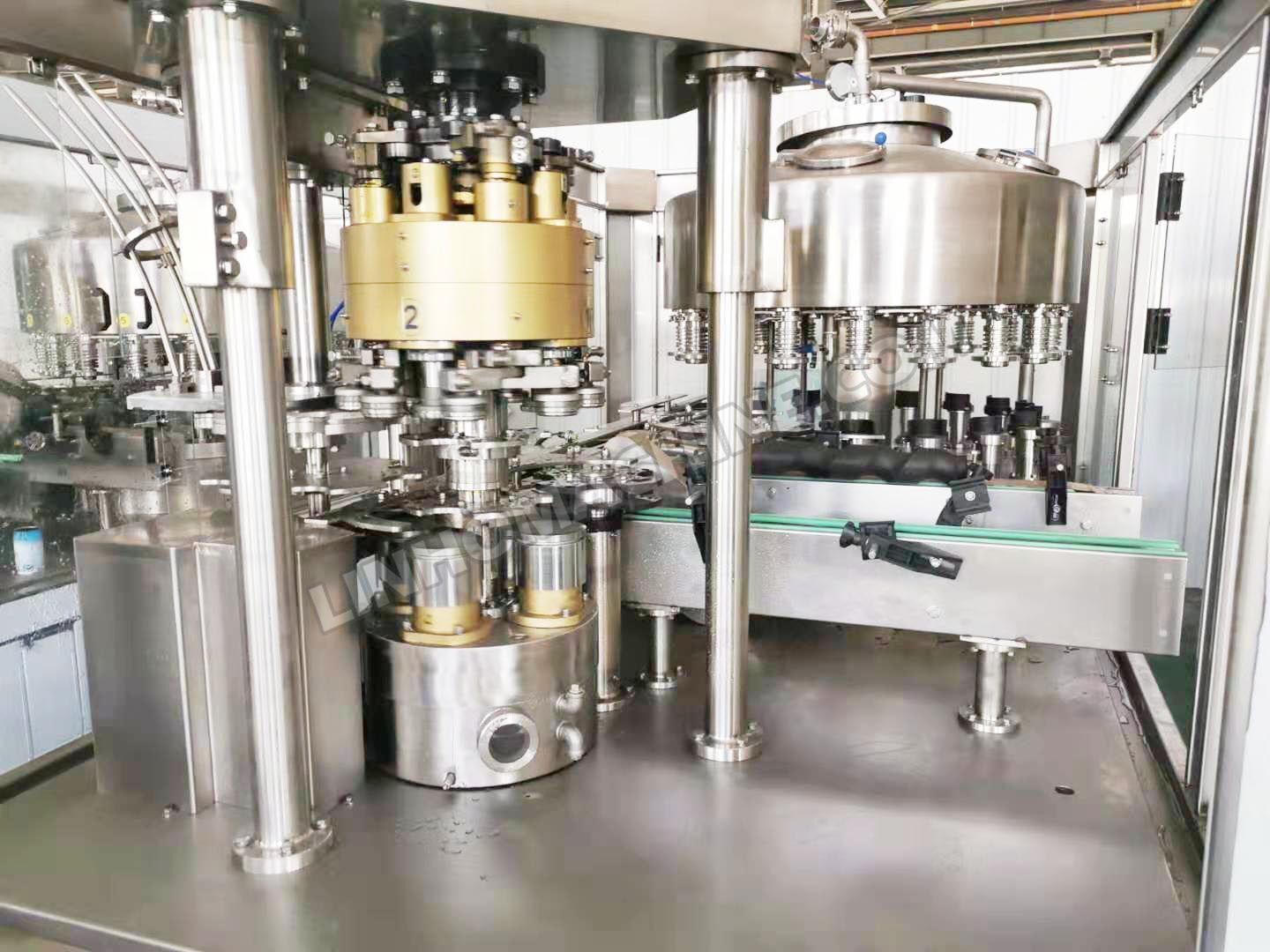

12-4 Filling And Seaming Combined Machine With Speed 8000cph. It Is For Water, Vodkha or Other Noncarbonated Drink.

Details of Noncarbonated Drink Can Filling Machine

Can Filling Machine Working Principle

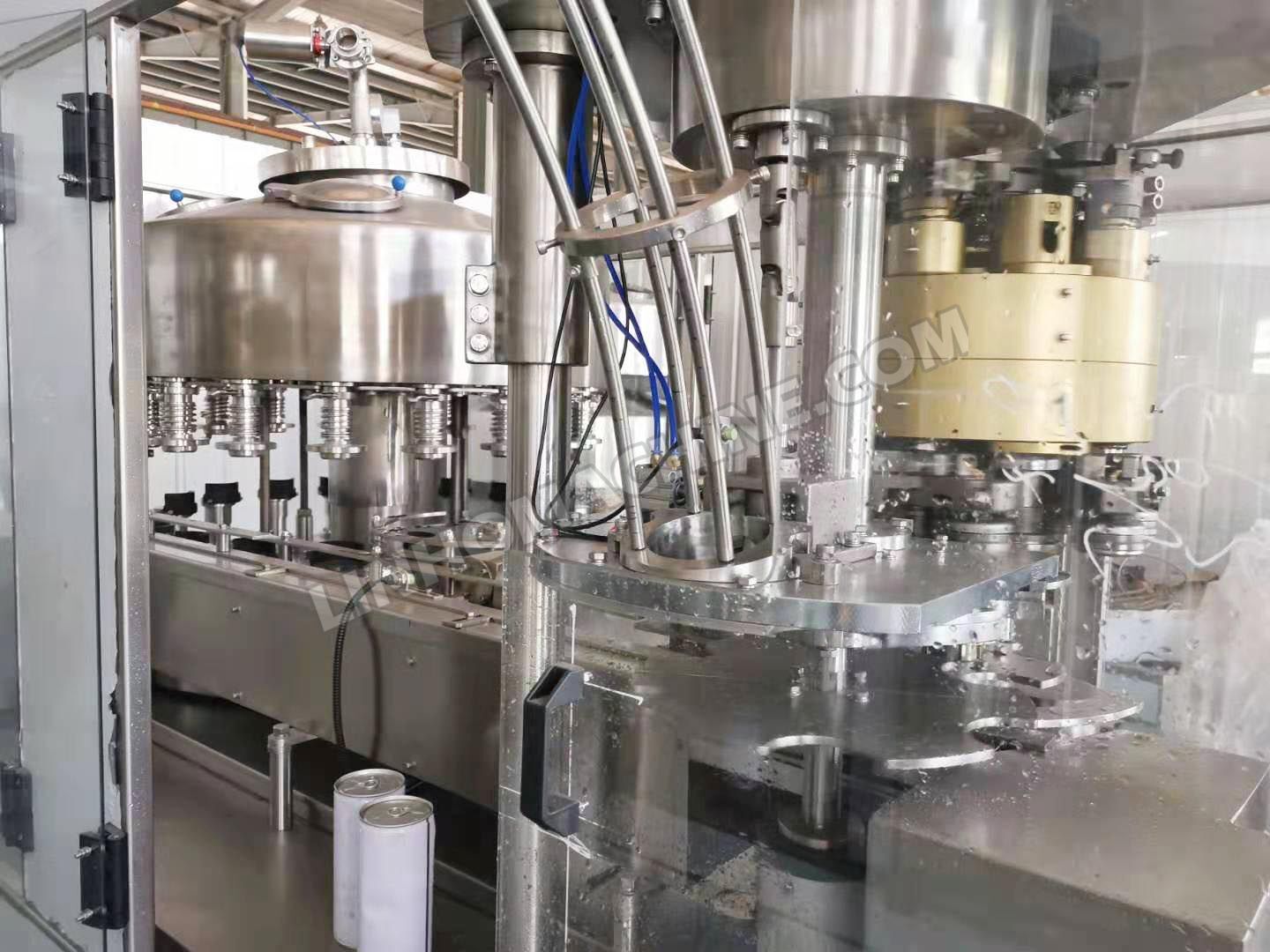

The machine adopts the principle of normal pressure filling. When the empty can gets into the lifting tray by the action of star wheel, filling valve is in the center of the empty can. Empty can be lifted and sealed, meanwhile, it opens the e filling valve automatically. When liquid surface blocks the filling valve suction tube, filling stops. Filled can be sent to the sealing head by the hook chain, and the lid is sent on the can. When the can is lifted, pressing head presses can strongly, then sealing wheel seal the can. Seamed can be pushed out after all.

Can Filling Machine Structure

This machine has the workbench, the liquid tank and the height adjustment mechanism, the conveyor belt, the cans distributor, star wheel and the guide plate, the lifting tray, the cam bracket, the hook chain, lid delivery mechanism, the tray, the sealing unit, the pressing head, the sealing wheel, driving system and electric system.

Can Filling Machine Parameter

MODEL

12-4 18-4 24-6 32-6

SPEED

CANS/HOUR

8000 15000 18000

24000

FILLING POSITION

12 18 24

32

CAPPING POSITION

4 4 6

6

CAN DIAMETER

65MM(customized)

CAN HEIGHT

122-166MM(customized)
