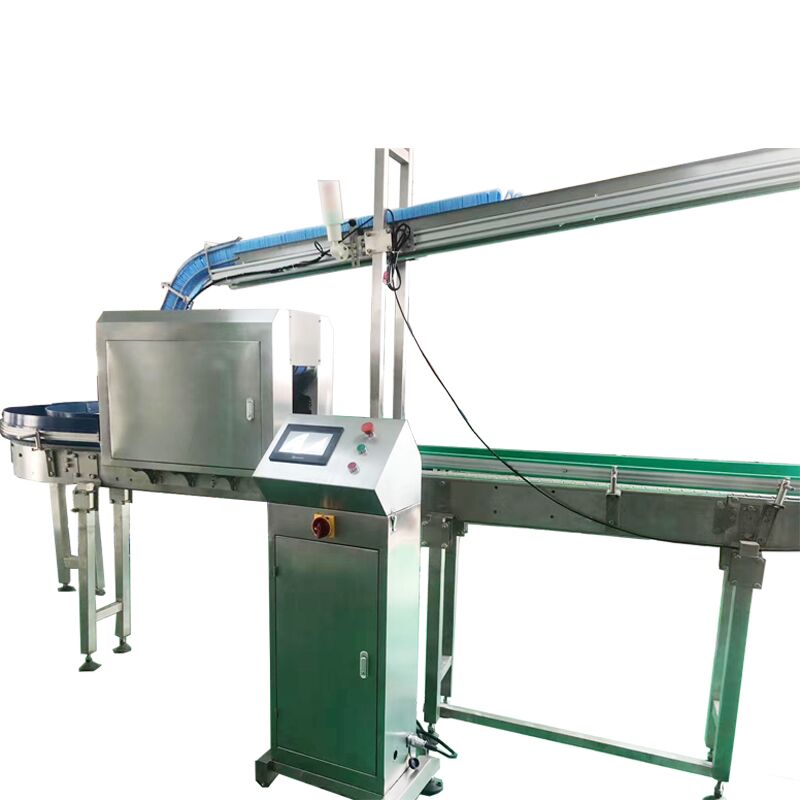

Big Bottle 2L-10L Bottle Handle Applicator Machine

Bottle Handle Applicator With Speed 3000-30000bph Is To Insert Handles On Bottles. It Is Mainly Used In Food Beverage Oil Industry To Insert Plastic Handle On Plastic Bottles.

Additional information

Speed

3000-30000bph

Suitable Bottle

Plastic

Control Type

PLC

Driving Type

Electricity & Compressed Air

Continous Work

Yes

View Videos

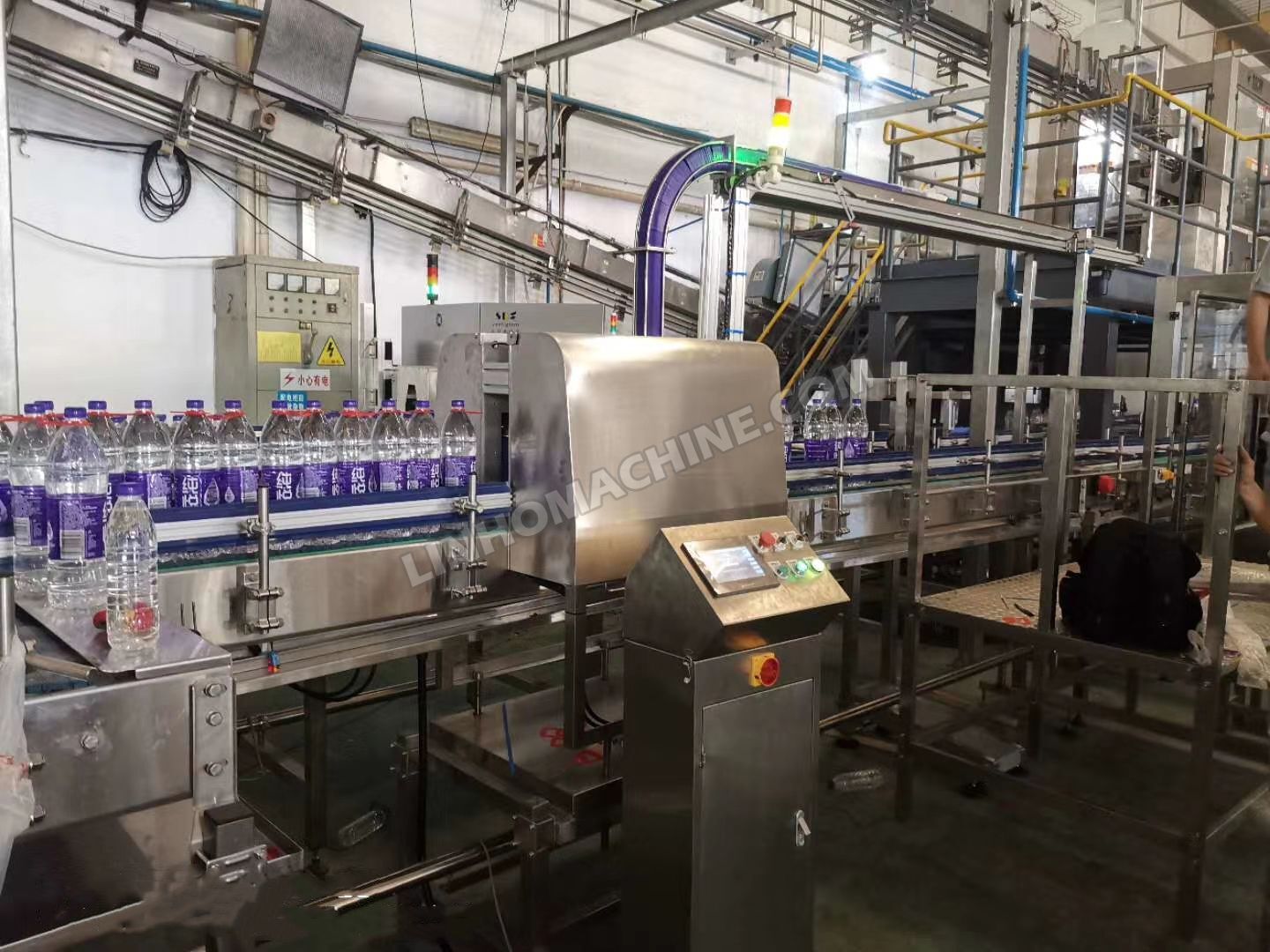

Bottle Handle Applicator Is To Insert Handles On Bottles Automatically For Filling Production Line. It Saves Lots Of Labor Cost Especially For High Speed Filling Lines. When Install The Applicator, Customer Just Need To Remove The Small Part Of Conveyor Guard Bar And Install It On Conveyor. Customer Can Improve The Current Filling Lines Easily. Various Models Machine With Different Speed Is Optional. Contact Us To Know What Model You Need.

Details of Big Bottle 2L-10L Bottle Handle Applicator Machine

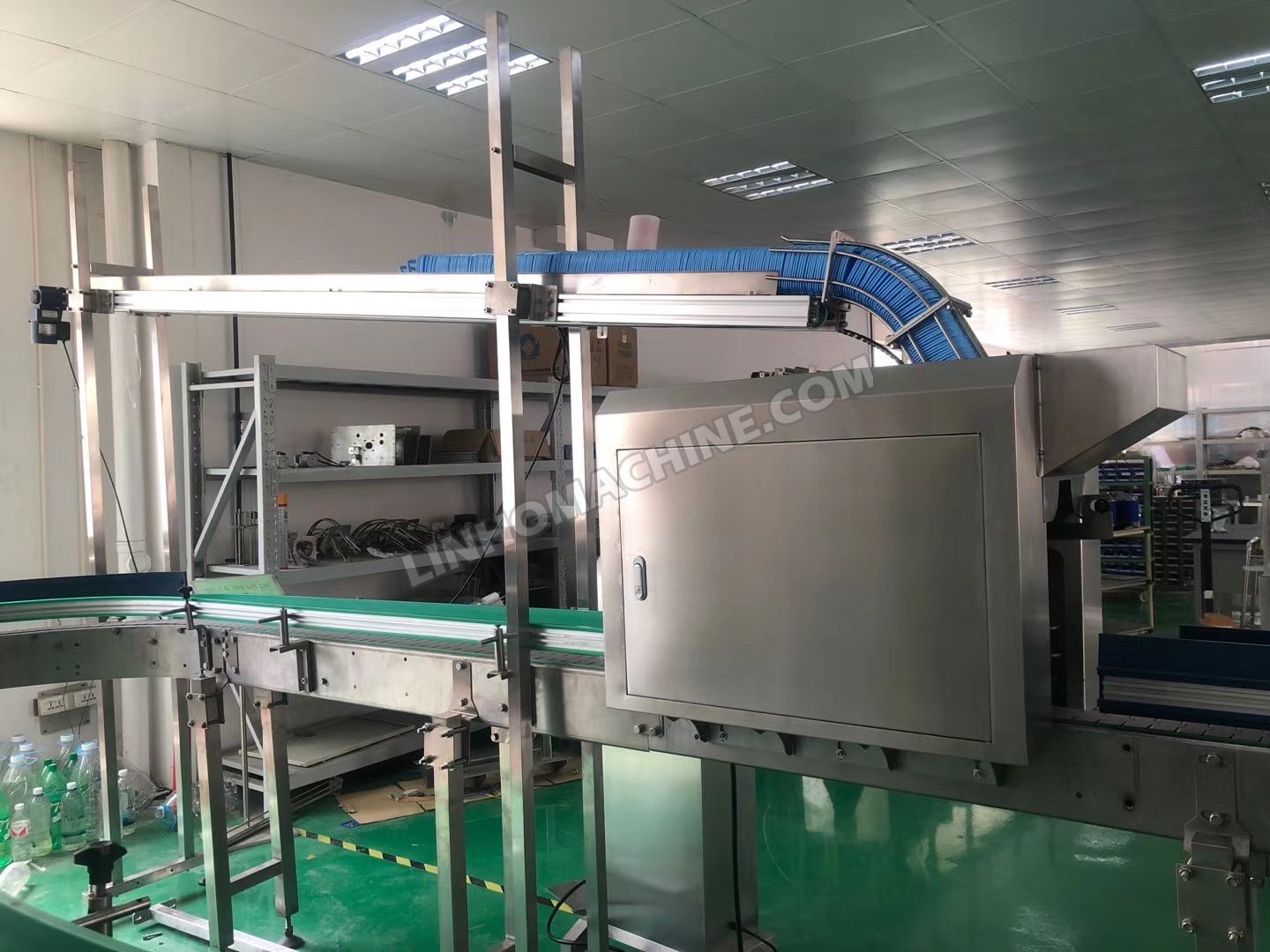

Bottle Handle Applicator Structure

The bottle handle pressing machine is composed of plastic handle conveyor, control cabinet, handle pressing machine and machine frame.

Handle Applicator Machine Features

Install on single row conveyor 1m. Easy installation.

PLC,  HMI, servo system or Pneumatic system, transducer and electric parts

SS304 and EU standard Aluminum section

Soft material and elastic material for bottle contacting parts.

Alarm when lack of handle and stop automatically when there is no handle

Sync with conveyor(optional)

Speed, handle quantity, handle pressing speed, trouble frequency is displayed

Handle Applicator Machine Parameter

MODEL

TH

100 100S 200S 300S 400S

500S

SPEED

BPH

3000

6000 12000 18000 24000

30000

BOTTLE RANGE

3L-10L

Φ75-105MM

Height 270-320mm

Or Customized

SERVO

NEED COMPRESSED AIR
