The Semi-Auto PET Bottle Blowing Machine Is Suitable To Produce From PET, PC, and PP Preform. Speed From 150bph-2000bph For Various Bottle Shape And Bottle Volume From 100ml-20L.
4 Cavity Semiautomatic Bottle Blowing Machine Speed Is 2000bph. By This Machine, Bottles Can Be Dropped Into Bottles Collector Box Automatically. Max Bottle Volume Can Be 3L.
Details of

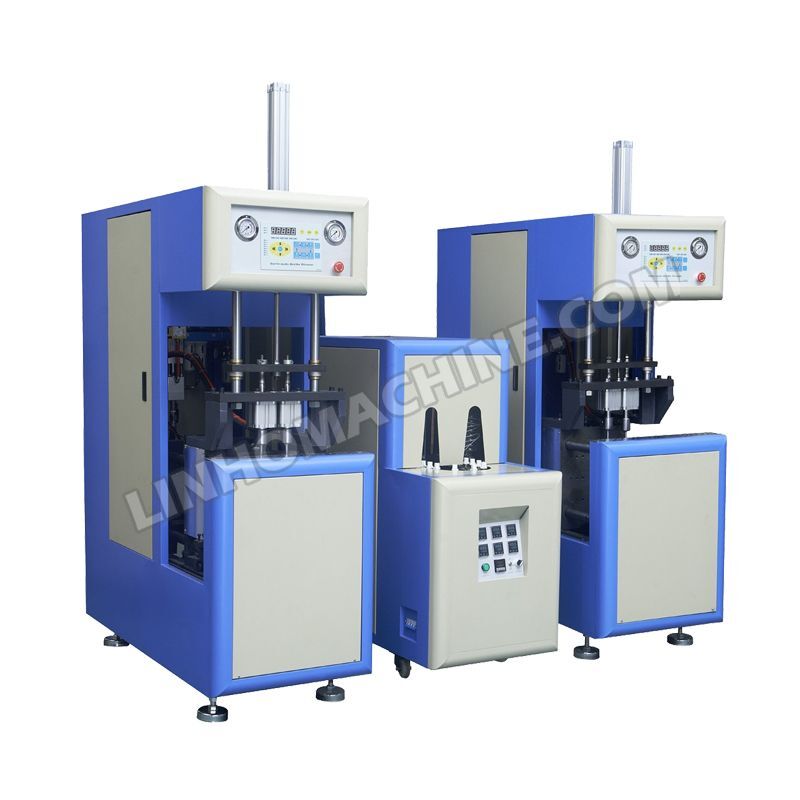

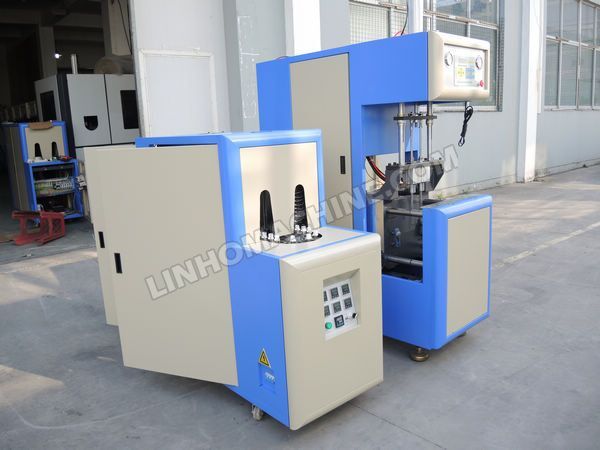

Semi Automatic PET Bottle Blowing Machine
Bottle Blowing Machine Introduction
It is mainly used for blowing mineral bottles, juice bottles, milk bottles, and other plastic products. Suitable for PET, PP, etc. crystallization of the second shaped bottle blowing plastic raw materials, and with large volume, fast, easy-to-use features.

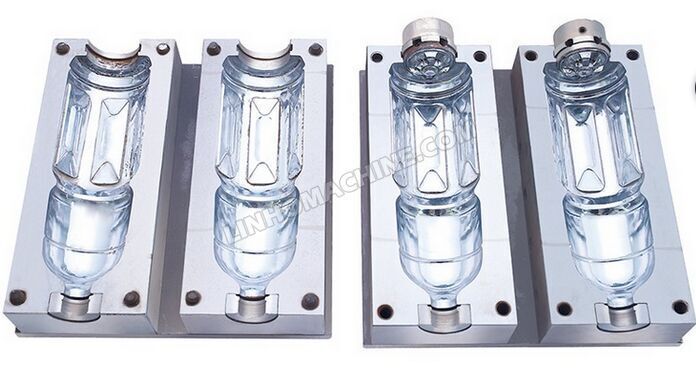

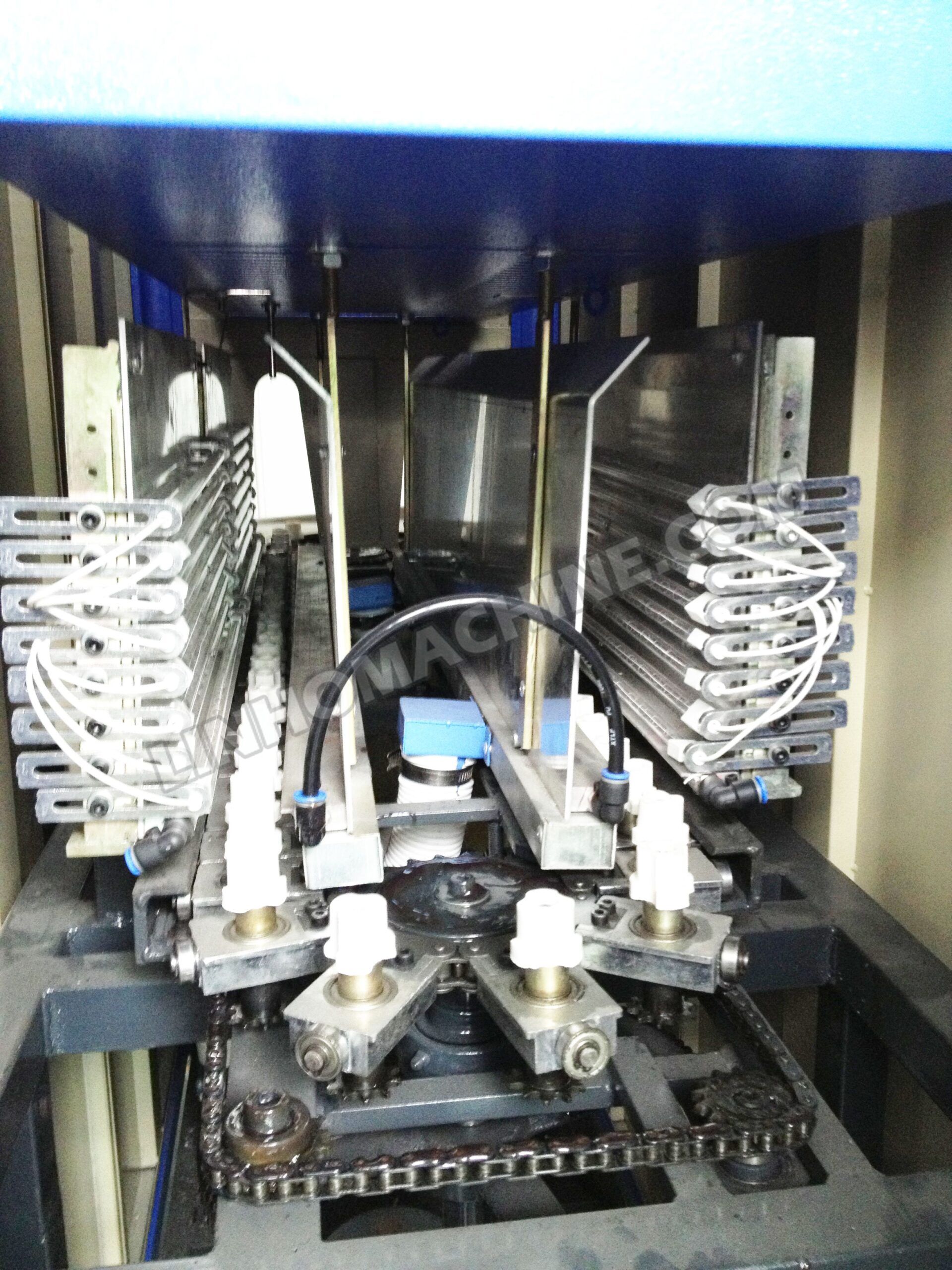

The blowing machine molding principle is “pull – blow”.Firstly, put the finished preforms on the preform holders of rotary infrared pre-heater manually. After heating, put heated preforms into blowing mold to blow bottles.
Bottle Blowing Machine Parameter
CAVITY
1-2
1
1
2
4
SPEED
BOTTLES/HOUR
150-500
90
500
900
1800
MAX VOLUME
L
5-10
20
7
3
3
MAX HEIGHT
MM
400
550
360
360
360
MAX DIAMETER
MM
200
300
120
105
105
