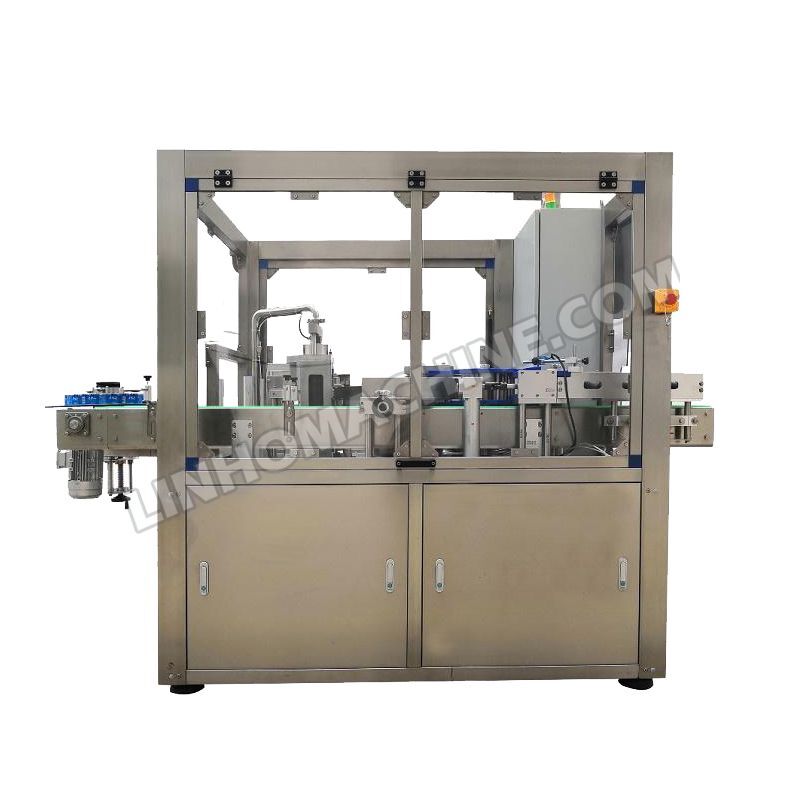

Hot Glue OPP Labeling Machine

Hot glue applicator speed: 8,000BPH to 36,000BPH. Labeling Material: OPP, BOPP, PE, PP, and Paper Film In Roller. Low-Cost Label Material And Energy Saving Feature Make It Popular.

Additional information

Speed

8000-36000bph

Glue Type

Hot Glue

Applicable Bottle

Round, Square

Machine Type

Linear, Rotary

View Videos

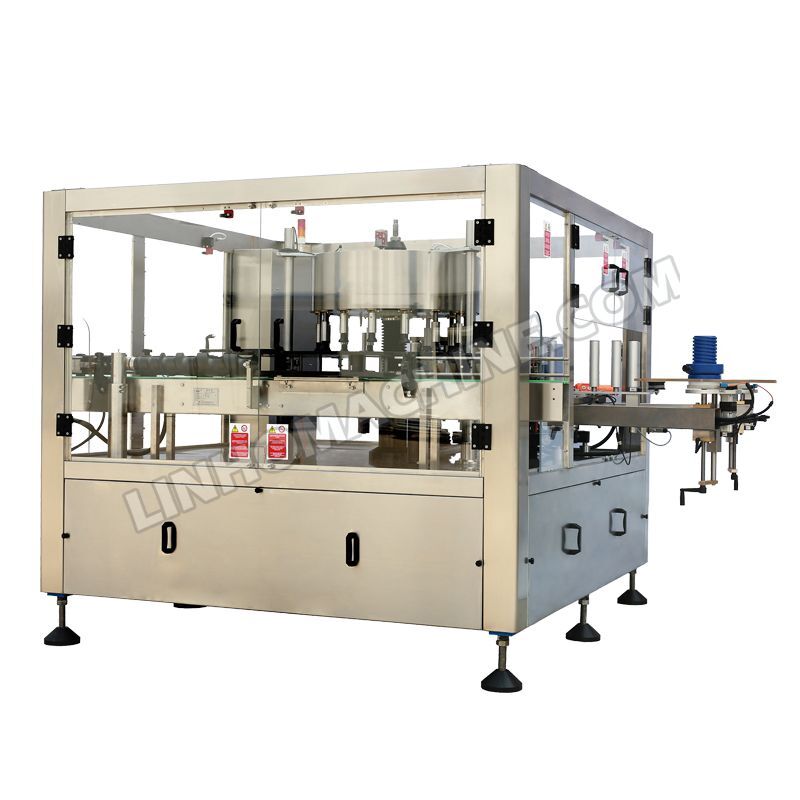

The Linear Type Hot Glue Labeling Machine Has Speed From 8000-18000bph. When Label Length Is Change, The Machine Can Adjust Sticking Automatically.

Details of Hot Glue OPP Labeling Machine

Label Sticking Machine Description

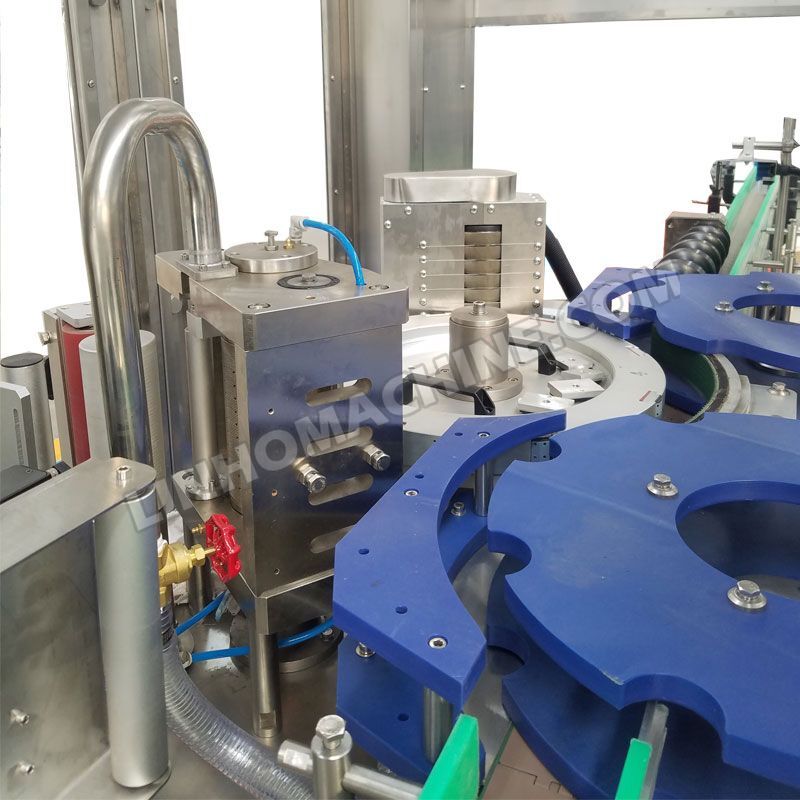

  • Use the Wheeled labeling method
  • Labels transported by label coils are labeled through the guide wheel running along the rails.
  • When the label passes through the supply wheel, the sensor automatically detects the I-mark.
  • Once the electronic eye position is confirmed, the demodulator automatically adjusts the speed of the supply wheel, and then specifies the cut position correctly.
  • The label passes through the supply wheel and enters the cutting part for the cutting operation, and then the cut label is fed into the vacuum suction pad.

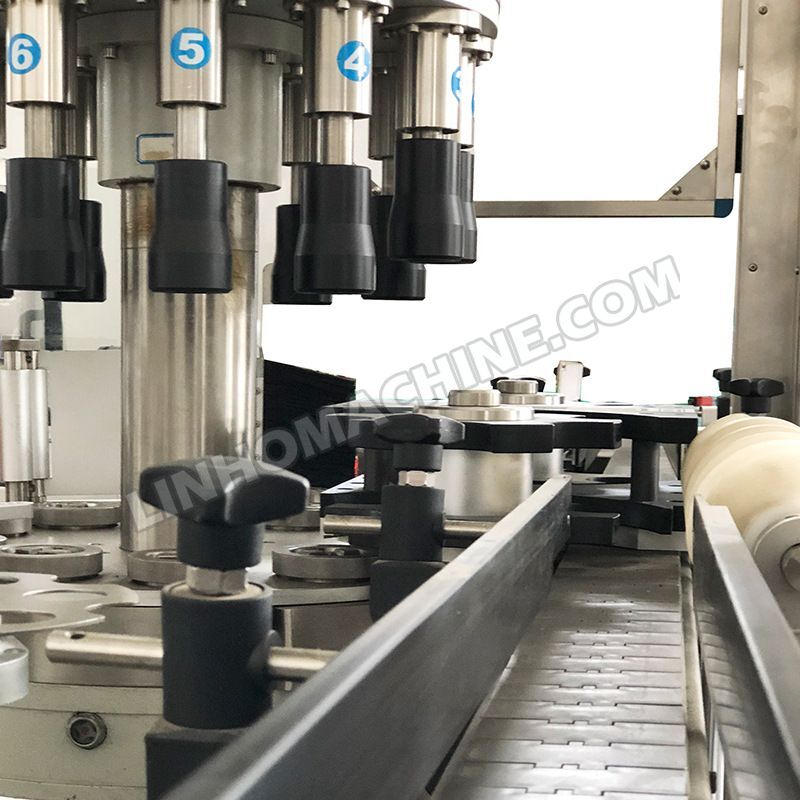

  • After the bottles transported by the conveyor belt are properly arranged by the supply star Wheel, the glued label is labeled in the roller area for the first time, and then depends on the function of the synchronous belt to carry on the perfect labeling operation.

Label Sticking Machine Character

  1. Label Cutting blade adjustment is Easy
  2. The vacuum wheel is made of high hardness material, and the fold processing program can reduce the label friction and prevent static electricity from producing.
  3. Compatible parts changing can be done quickly and efficiently in 10 minutesAccurate and easy adjustment of blade position with manual operation disc.
  4. The down part of the Vacuum wheel and label cutting part is made of wear-resistant anti-heating special materials.
  5. When the label length changes, the automatic adjustment button can automatically adjust the I-mark position

Label Sticking Machine Parameter

MACHINE TYPE

ROTARY LINEAR

SPEED

BPH

12000-36000

8000-18000

LABEL HEIGHT(CUSTOMIZED)

MM

140

LABEL LENGTH(CUSTOMIZED)

MM

310

GLUE TEMPERATURE

120-160℃

STICKING PRECISION

±0.5mm
