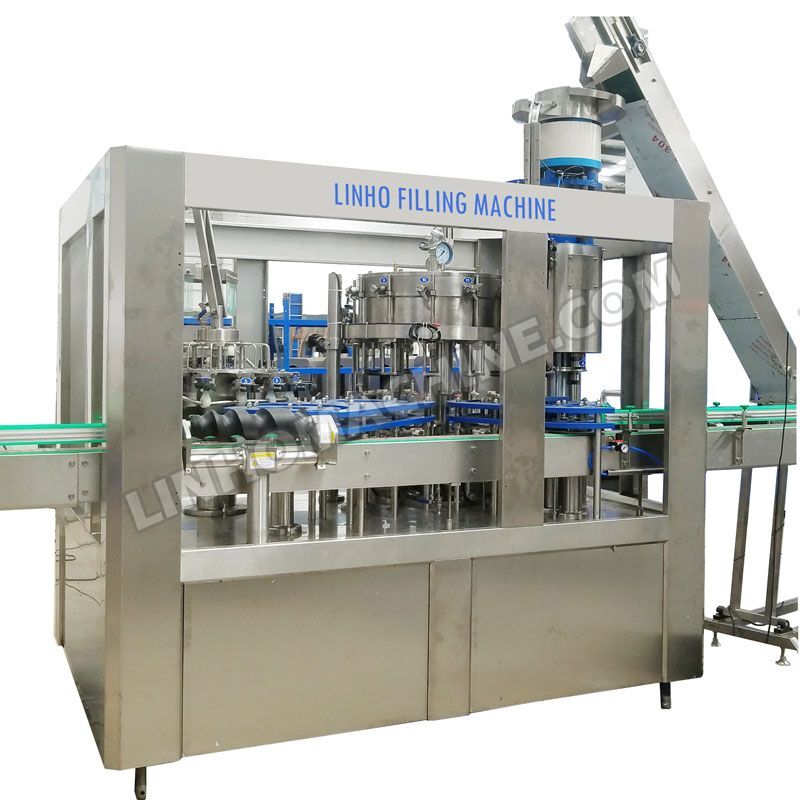

Glass Bottle Carbonated Sparkling Water Filling Machine

Glass Bottled Sparkling Water Filling Machine Is Designed On Counter Pressure Filling. The Cap Could Be Crown Cap, Screw ROPP Cap, Pull-Ring Cap, Or Twist Off Cap. Speed Is From 2000bph To 18000bph. Bottle Washing At The First Step, Then Bottle Filling And Capping. After Bottle Capping, Filled Bottles Be Transfered To Labeling Machine, Packing Machine.

Additional information

Filling Speed

2000-18000bph

Bottle Type

Glass

Filling Method

Counter Pressure

Cap Options

Crown, Aluminum, Pull-Ring

View Videos

Glass Bottle Filling Machine Is Designed On Negative Pressure Filling, Counter Pressure Filling Or Gravity Filling Suitable For Still Water, Carbonated Drink, Alcohol Drink, Juice, Dairy, Beer.

Details of Glass Bottle Carbonated Sparkling Water Filling Machine

Carbonated Drink Filling Machine Components

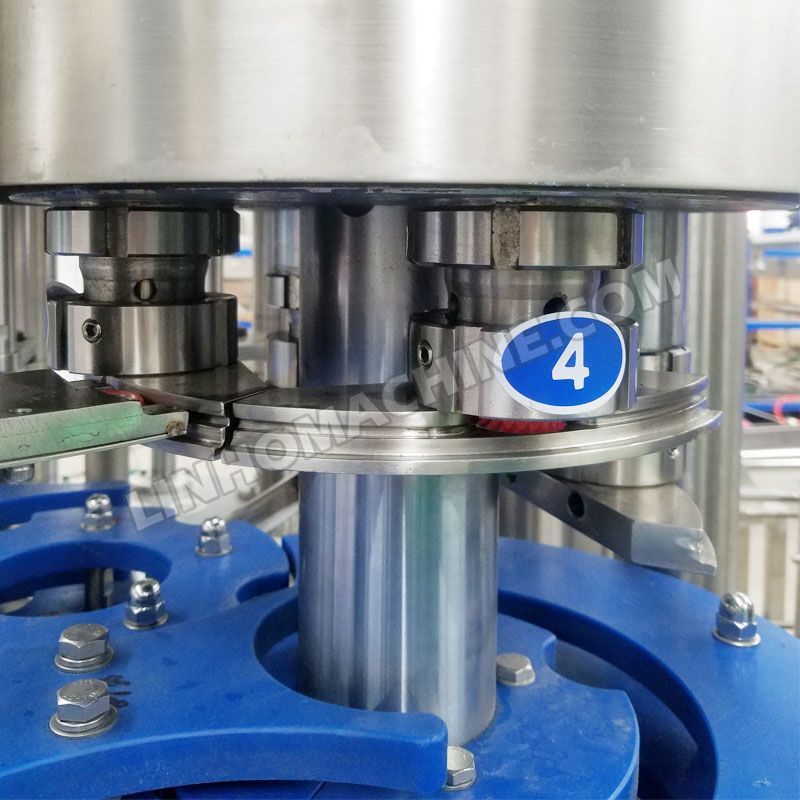

Main components of equipment: the main machine includes floor racks, glass-enclosed box, filling machines, capping machines, motors, wheel drive, wheel-shaped plate, cover and lower cover tanks, bottle chain, and electrical control system components. Bottom welding by rectangular tubes and steel plate, on the surface and surrounded by covered stainless steel Panel, high strength, good rigidity, lightweight, is the Foundation of whole set equipment, its base fitted with anchor bolts, adjustable level and high and low;Glass sealed around the surrounding box will host, with transparent glass doors at the top monitoring equipment, elegant appearance, the use of safe and reliable.

Carbonated Drink Filling Machine Character

  • Bottleneck suspension operation design assures the bottle runs smoothly and reliably. At the same time greatly reduce the number of change parts, and save time to change bottle type.
  • PLC programmable control, frequency conversion stepless speed regulation, advanced control, easy operation, and maintenance.

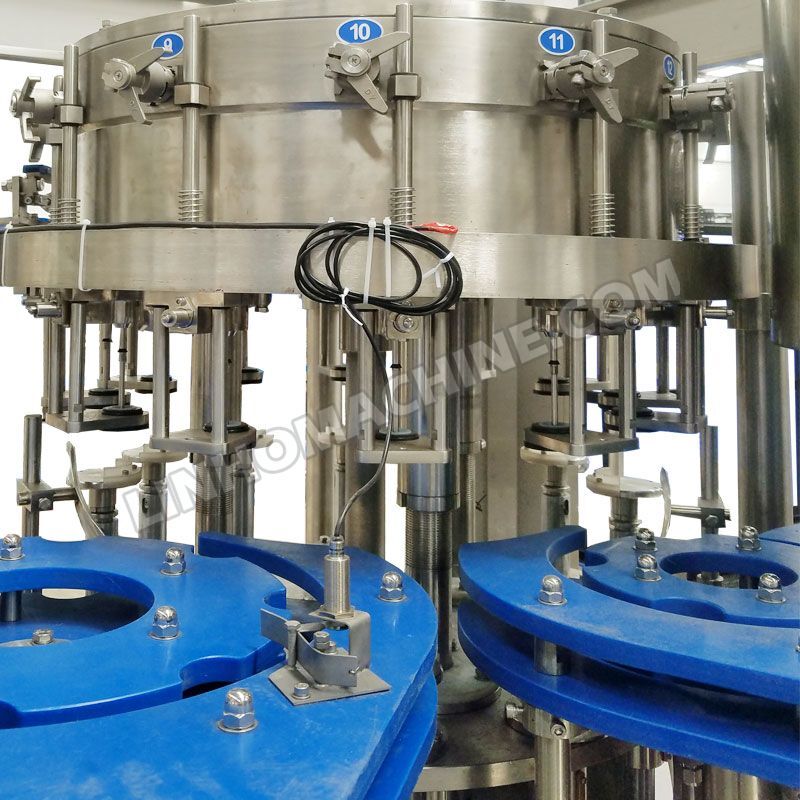

  • High-precision high-speed gravity filling valve control liquid surface smoothly and drip-free.

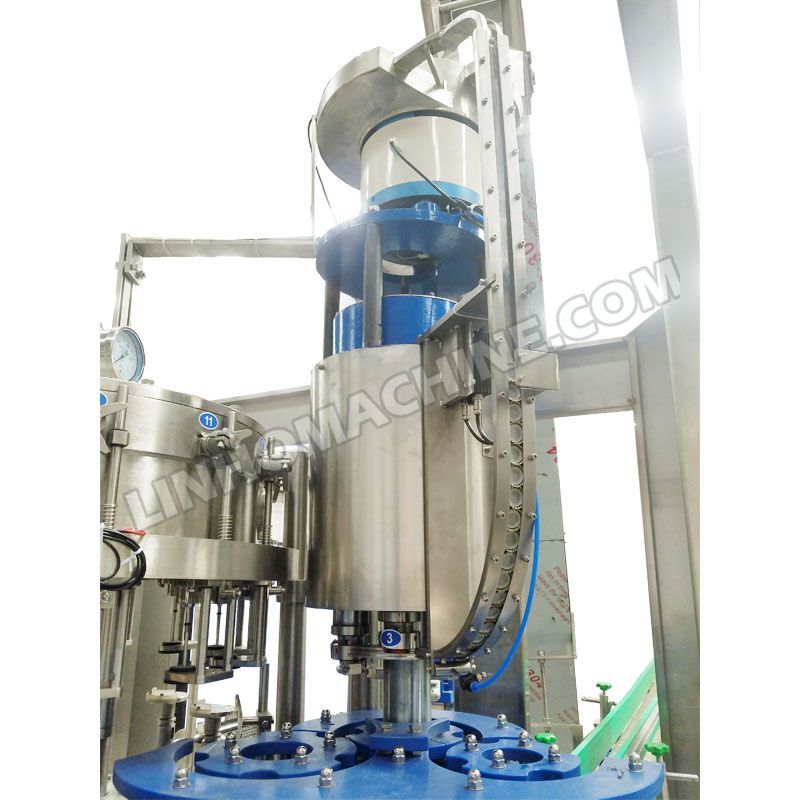

  • The magnetic constant torque capping is used to realize the function of the automatic grip and screw cap. The cap screw torque is stepless adjustable and does not hurt the cap. The capping is strict and reliable.
  • Advanced control, full function. With the liquid tank level automatic control, no bottle not filling, no bottle no capping and other automatic control functions.

Carbonated Drink Filling Machine Parameter

MODEL

BDCGF

14-12-5 18-18-6 24-24-8 32-32-10 40-40-12

50-50-15

SPEED

BPH/500ML

2000 4500 7000 9000 14000

18000

BOTTLE RANGE

Φ55-110MM

Height 150-310mm

WASHING POSITION

14 18 24 32 40

50

FILLING POSITION

12 18 24 32 40

50

CAPPING POSITION

5 6 8 10 12

15
