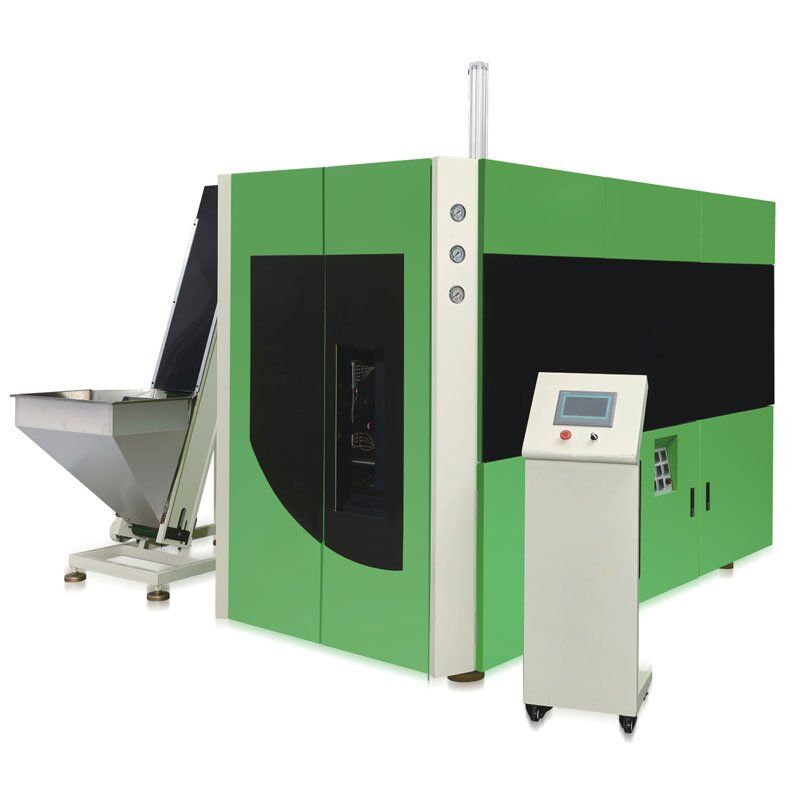

Automatic Water Bottle Blowing Machine

This Linear PET Bottle Blowing Machine Mainly Be Used For Water And Beverage PET Bottle Blowing. Speed From 500bph-6000bph For Various Bottle Shape And Bottle Volume From 100ml-25L.

Additional information

Speed

500-6000bph

Blowing Cavity

1, 2, 3, 4, 6, 8

Automation Degree

Full Automatic

Bottle Volume

100ml-25L

View Videos

Automatic Bottle Blowing Machine 2 Cavity. Speed Is 2500bph. Max Bottle Volume Is 0.75L

Details of Automatic Water Bottle Blowing Machine

Bottle Blowing Machine Introduction

It is mainly used for blowing mineral bottles, juice bottles, milk bottles, and other plastic products.Suitable for PET, PP, etc. crystallization of the second shaped bottle blowing plastic raw materials, and with large volume, fast, easy-to-use features.

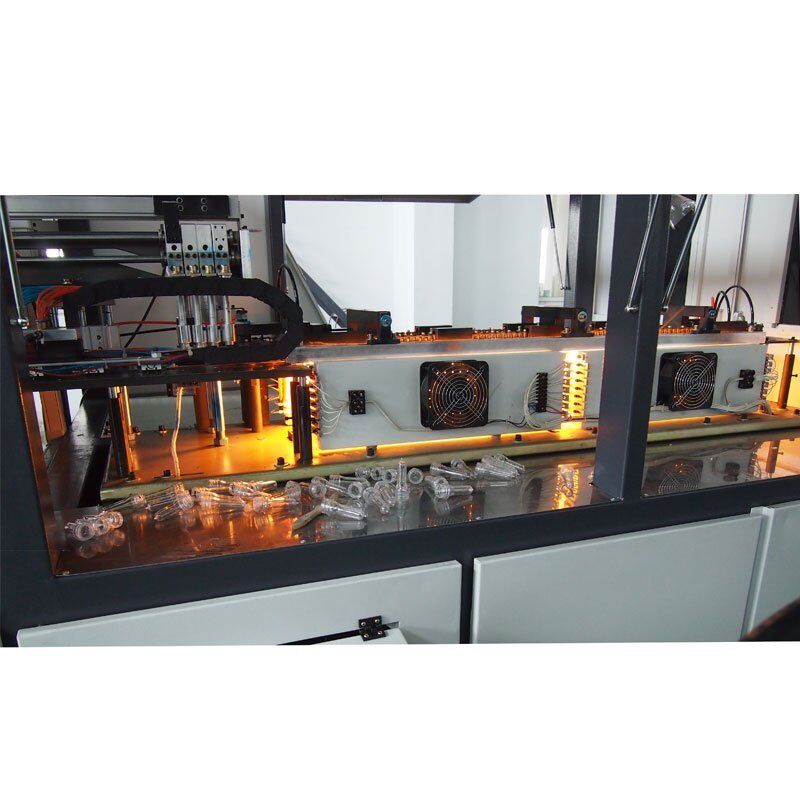

The blowing machine molding principle is “pull – blow”.First, put the finished preforms into preform hopper. The conveyor automatically conveys the preforms to the entrance of the machine and puts the preforms into the machine orbits to have preforms heat. After heating, preforms be sent to blowing mold to have stretching and blowing.

Bottle Blowing Machine Parameter

CAVITY



3 4 6 2

3

SPEED

BOTTLES/HOUR

4500 5500 6500 1200

1800

MAX VOLUME

L

1.5 1.5 1.5 7

7

MAX HEIGHT

MM

360 360 360 360 360
MAX DIAMETER

MM

105 105 105 195

195
