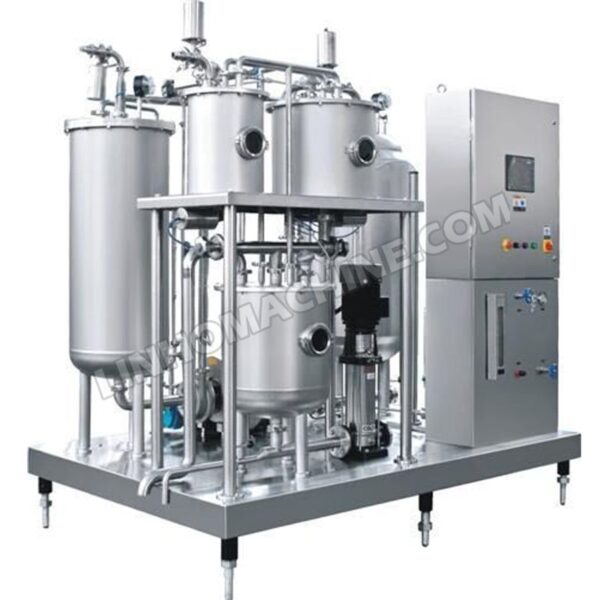

Automatic Carbonated Mixing Machine

To Make Carbonated Drink, The Drink Must Be Mixed Well With CO2 Well. The Carbonated Mixing Machine Is To Mix Beverage WIth With CO2. The Mixing Is Accurate, Production Capacity And The Proportion Of Water And Sugar Is Easily Adjustable.

Additional information

CO2 CONTENT

3.5 TIMES

CONTROL TYPE

PLC

AUXILIARY MACHINE

CHILLER

COOLING TYPE

PLATE HEAT EXCHANGER

View Videos

Details of Automatic Carbonated Mixing Machine

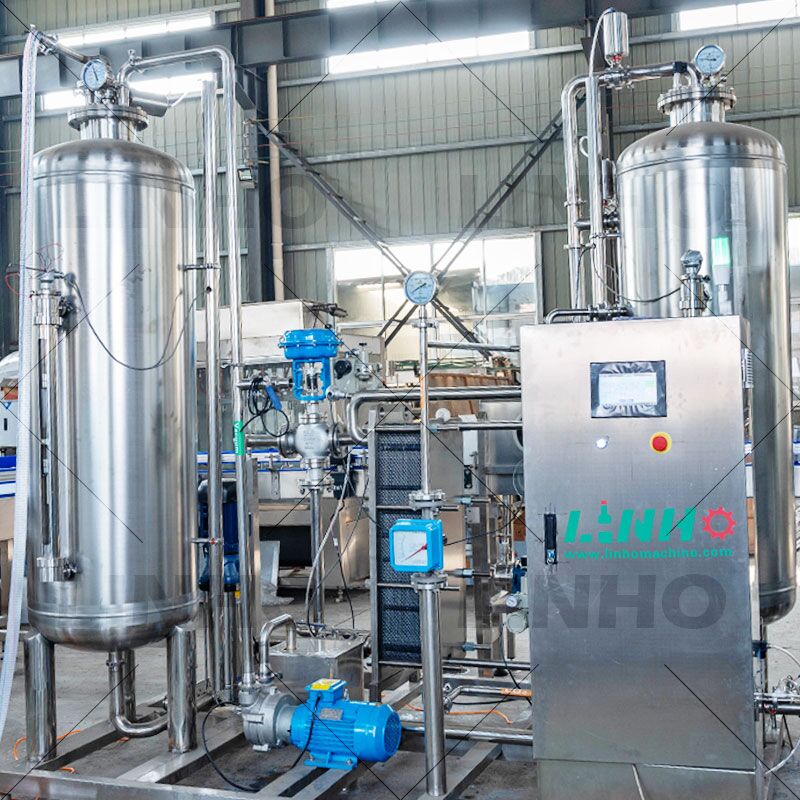

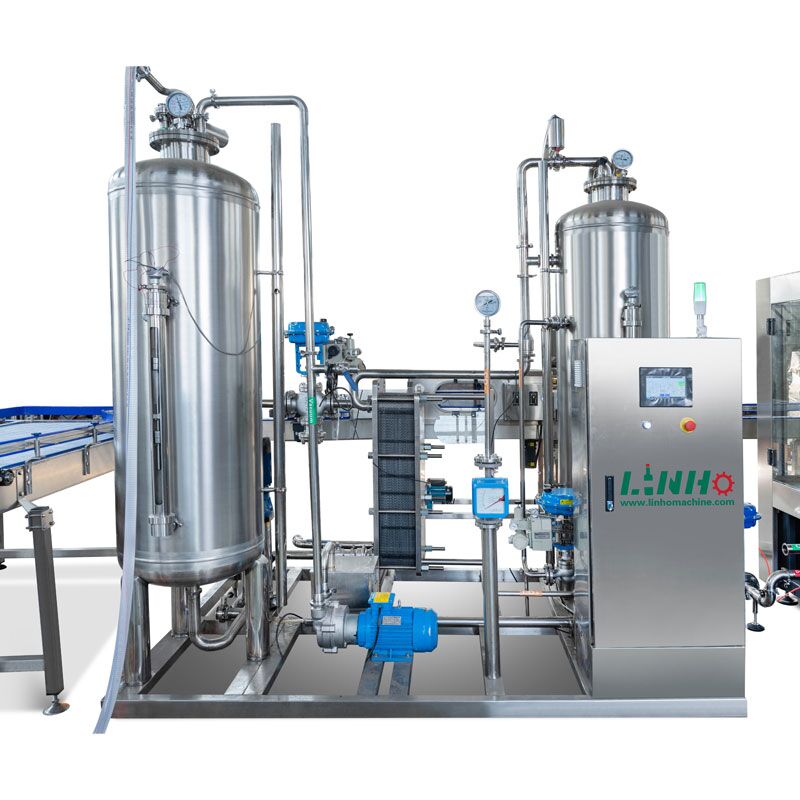

Carbonated Mixer Structure

It consists of a vacuum tank, mixing system, and carbonation tank.
the vacuum tank is a negative pressure vessel with pneumatic butterfly valve, atmosphere pipe and vacuum system piping on the top, axial electric contact vacuum gauge, level control meter (high, medium, low) on the side, and the bottom pipe is connected with inlet pump.

Mixing system is an important component part of the carbonated mixer. It can mix water with syrup at the predetermined rate steadily and automatically. Mixing system includes the pneumatic valve, water tank, water tank to mix the needle valve, needle valve, sugar pot sugar, sugar jar of a pneumatic valve, mixing tank, T tube and mixing pump.

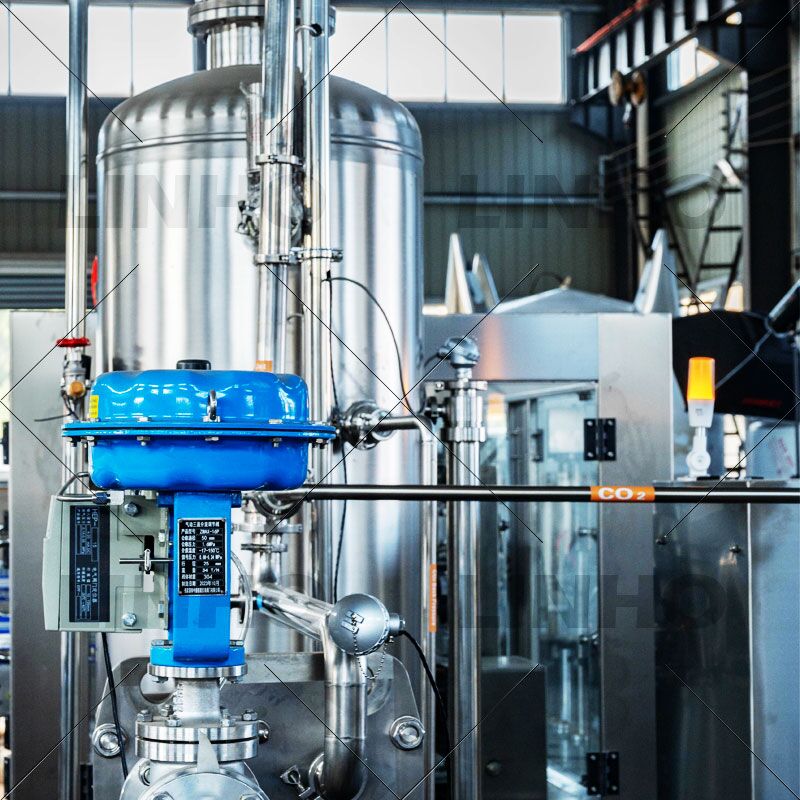

Carbonation tank is a pressure container with a safety valve and the overflow tube on the top. There is a solenoid valve on the overflow tube. When the machine is in “automatic” state, open the overflow valve, air on top of overflow tank from tank top purifies tank CO2. The solenoid valve is to control the pressure of the carbonation tank. When the pressure is too high the solenoid valve is energized open and vice versa.

Carbonated Mixer Parameter

MODEL



HH

PRODUCTION CAPACITY

L/H

1000-10000

MIXING PROPORTION

WATER: SUGAR

3:1-6:1

CO2 CONTENT

3.5TIMES

MIXING TEMPERATURE

<4℃
DRINK OUTPUT TEMPERATURE

1-2℃
